About
PIR 30mm

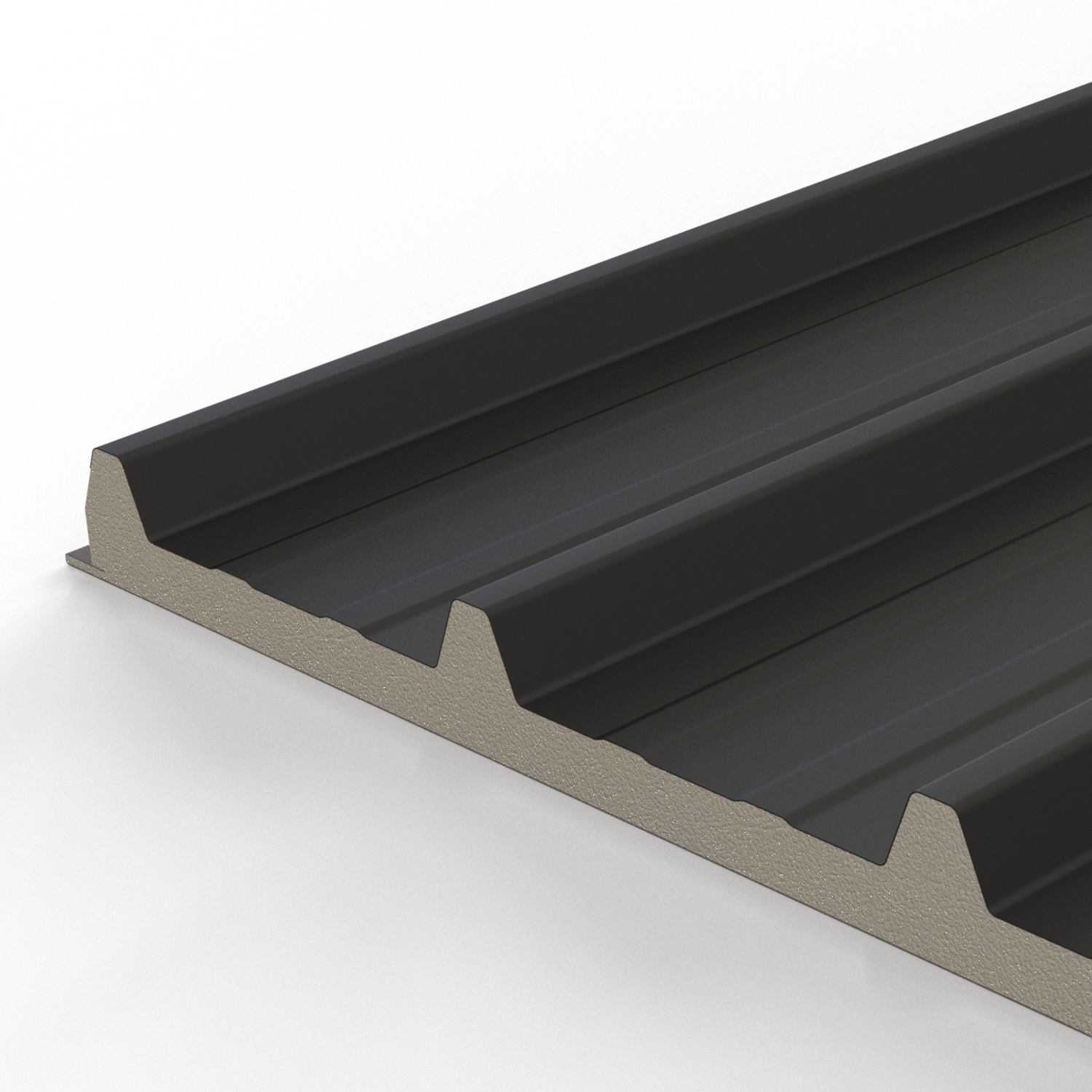

The Briarwood Insulated Roof Panel is perfect for inclined, apex, and pitched roofs, or as cladding on walls, whether positioned horizontally or vertically. It is ideal for exterior insulated cladding on a range of buildings, including industrial, commercial, public facilities, and agricultural structures. Featuring a robust PIR insulated core between metal sheets, this panel provides excellent thermal insulation and supports significant span widths. It requires a minimum installation angle of 4 degrees to accommodate any potential sagging.
![](https://www.briarwoodproducts.co.uk/hubfs/30mmAnthraciteClose%20(4).jpg)
Product
Dimensions
Length:
Min 3075mm / Max 7075mm
Width:
1000mm
Weight:
7.42 kg/m²
Thickness:
30mm
![Product Dimensions](https://www.briarwoodproducts.co.uk/hubfs/Insulated_Panel_30mm_Drawing.webp)
Insulation
Details
- Thickness 30mm
- Insulation Polyisocyanurate (PIR)
- Fire rating B-s2,d0 according to EN 13501-1
- Density 40 ± 5 kg/m³
Insulation Thickness | U (W/m²K) | Rw (dB) | R (m²K/W) |
30mm | 0.71 | 23.0 | 1.41 |
Available
Colours
![Anthracite](https://www.briarwoodproducts.co.uk/hubfs/Anthracite-Grey-RAL7016-Pantone.jpg)
![Dark/Moss Green](https://www.briarwoodproducts.co.uk/hubfs/RAL-6005-Moss-Green-Pantone.jpg)
